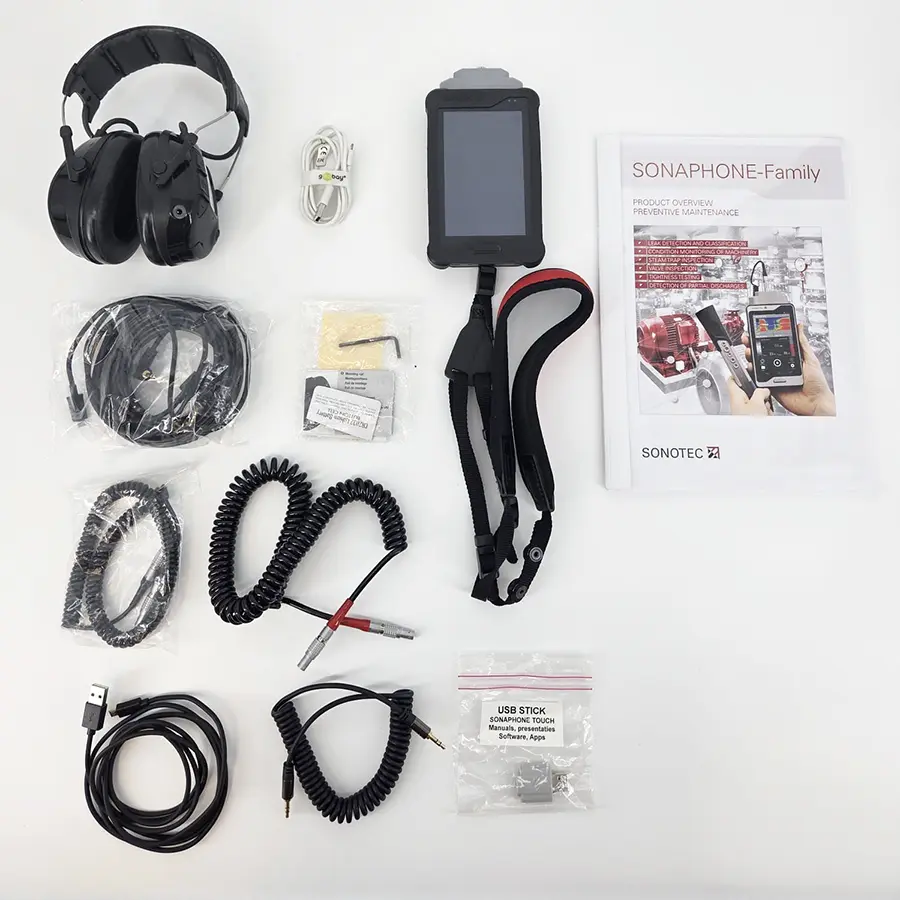

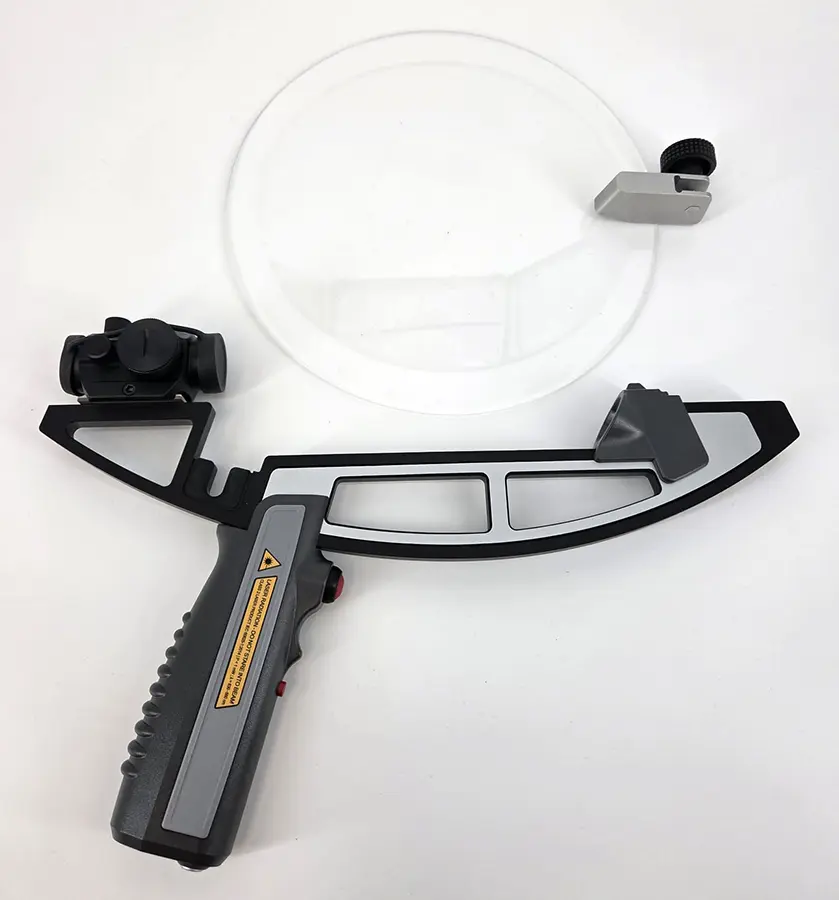

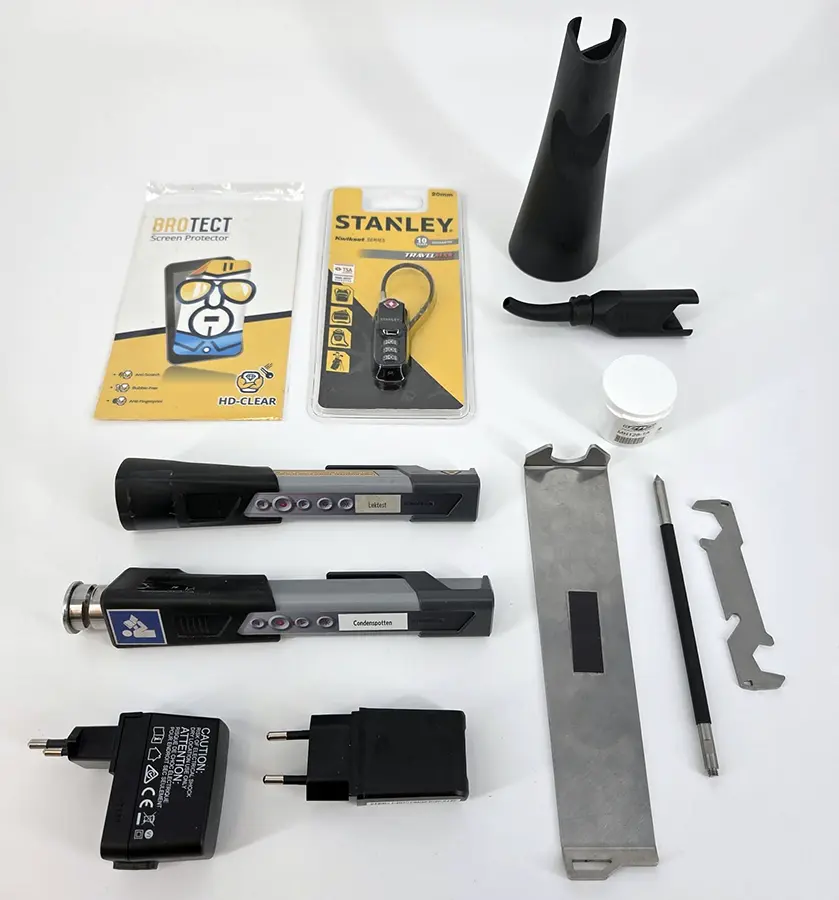

Beschrijving
Toepassingen
Met de nieuwe SONAPHONE kunt u:
- Detecteer en classificeer lekken in perslucht-, gas- en vacuümsystemen en verlaag uw energiekosten
- Bewaak de conditie van uw machines en bepaal de optimale onderhoudstijd
- Identificeer lekken in ramen, deuren, voertuigen, componenten en containers en zorg ervoor dat wordt voldaan aan gespecificeerde kwaliteitseisen
- Vind elektrische deelontladingen en isolatieschade en verhoog uw bedrijfsveiligheid
- De functie van condenspotten beoordelen en energie- en stoomverlies en schade aan het stoomsysteem voorkomen
Breedband ultrasone analyse
- Frequentiebereik van 20 tot 100 kHz
Software die intuïtief te bedienen is
- Apps begeleiden je tijdens het hele testproces; van planning, testen en documentatie tot analyse
- SONAPHONE kan intuïtief worden bediend als een tablet via een 5-inch display met multi-touchscreen
- Verminder papieren dossiers, die foutgevoelig en vooral tijdrovend zijn
Relevante informatie bundelen
- Apps bundelen alle informatie die relevant is voor onderhoud – altijd inzicht in de staat van uw machines en systemen
- Spectrogrammen, tijdsignalen, geluidsbestanden en niveaus opnemen
- Foto’s, tekstopmerkingen en spraakmemo’s toevoegen
Testrapporten met een paar klikken
- Maak een professioneel rapport als PDF en bespaar tijd
- Evalueer testgegevens op de pc met SONAPHONE DataSuite
Technische gegevens
Design | Digital Ultrasonic Testing Device with Touchscreen |
---|---|
Processor | ARM Cortex-A9 Dual Core 1.2 GHz |
Display | 5″ TFT Display, Resolution WVGA 800 x 480 Pixel |
Touchscreen | PCT, 5-Point Multi-Touch Controller |
Acoustic Signal Output | Via Speaker or wired Headphones |
Memory | 8 GB Flash System Memory16 GB Flash Internal Measurement Data Memory 2 GB SDRAM |
Connections and Interfaces | Ultrasonic Sensors: Lemo
Charger: USB 2.0 Micro-B Stereo Headphone Jack: 3.5 mm Memory for Data Export: Slot for microSD Card (up to 32 GB) |
Operating System | Android 4.4.2 |
Miscellaneous | 5-Megapixel Camera on the Back of the Device
integrated Microphone integrated Position Sensor |
Dimensions (W x H x D) | 90 x 174 x 25 mm (90 x 174 x 30 with High Capacity Battery) |
Weight | 370 g (420 g incl. High Capacity Battery) |
Electrical Data
Battery | Type: Lithium Polymer Battery; 3.7 V; 4.05 Ah; 15 Wh (High Capacity Battery: 3.7 V; 7.35 Ah; 27.2 Wh) |
---|---|
Power Supply | Charging Adapter with micro USB Connection (5 V, 2 A) |
Operating Time | In practical Use: 8 … 12 h
In continuous Operation: 4 h (or 8 h with High Capacity Battery) |
Charging Time | Typically 4 h |
Environmental Conditions
Operating Temperature | -10 °C … +65 °C |
---|---|
Temperature when charging the Battery | 0 °C to +20 °C |
Storage Temperature | -20 °C … +65 °C |
Protection Type | IP40 |
Standards and Guidelines | EMV RL 2014/30/EU; WEEE RL 2012/19/EU; RoHS RL 2011/65/EU; ASTM E1002-2005 |
Software LevelMeter App
Functions | Take Photos to attach to Data Sets or Measurements Inserting Markers immediately after taking a Photo Record Voice Memos for attaching to Data Sets or Measurements Storage of Text Comments Select the Current Application (Leak, Bearing etc.) for the Context for Measurements Creation of PDF Reports of selected Records Export of selected Data Records for further Analysis on the Computer (e.g. in the DataViewer) |
---|---|
Saving and Recording | Format Audio Data: *.wav Storage Location: Internal Measurement Storage Memory Requirements (per Minute of Measurement Time) Level: 88 kB Spectra: 2 MB Audio: 1 MB Data Organization: Hierarchical in Data Sets and Measurements |
Displays | Level Graph (only the “Main” Level – highlighted in Green, freely selectable) Level Wheel and Level Bars (instantaneous Level only) Level Table, configurable in Terms of Layout, Number (max. 5) and Type of displayed Levels The following Sound Pressure Levels can be displayed, as well as the Temperature (T, only active with Structure-Borne Sound Sensor BS20):L – Instantaneous Level LF – Instantaneous Level with Time Weighting Lpk – Peak Level Leq – Equivalent continuous Sound Level Lmin – Minimum Value of instantaneous Level Lmax – Maximum Value of instantaneous Level(in dB, Reference p0 = 20 µPa, Temporal Resolution: 16 ms per Level Value) Spectrogram (Temporal Resolution: 16 ms per Frequency Spectrum) Portrait/Landscape Measurement Time, Playback Position |
Operating modes | Live – Display of current measured Values Recording – Display and saving of current measured Values Playback – playing of saved measured Values |
Languages | Chinese, Czech, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
